一丶N卡A卡驱动自带监控
首先来到我们最熟悉的N卡,Geforce Experience除了可以录制游戏内容,开启游戏滤镜,设置游戏内容等功能外,其实是可以显示游戏内FPS的,具体方法如下:

注:安装N卡驱动的时候默认是推荐Geforce Experience一起安装的,在桌面快捷方式可查找到,如果没有创建快捷方式,可以在N卡安装目录里查找
默认目录:安装驱动盘符\NVIDIA\DisplayDriver\驱动版本\Win10_64\International\GFExperience
找到GE程序运行即可

如果没有安装GE软件,也可以到官方自行下载 网址:https://www.geforce.com/

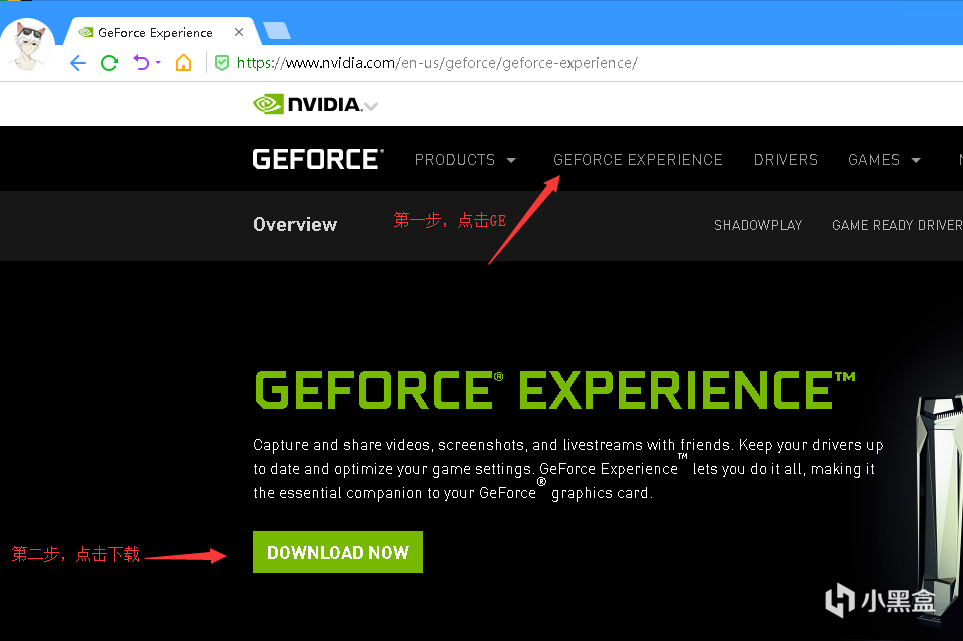

N卡驱动也可以在以上GE网址下载,如果要下载N卡驱动点击第一栏第四项的DRIVERS即可,下载GE软件根据图下箭头操作!

使用方法:
进入Geforce Experience打开设置,找到红框内(游戏内覆盖)点击启用,然后点击下方箭头指标设置,或者用快捷键呼出设置,默认快捷键(ALT+Z)

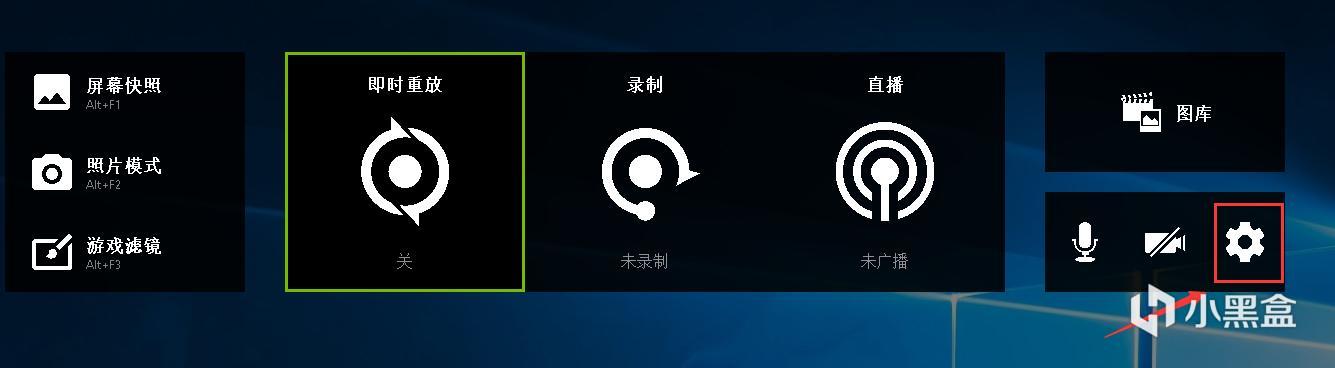

两种打开设置的方法,第一种点击图上的设置,第二种用快捷键呼出控制界面后点击箭头指向的设置即可打开

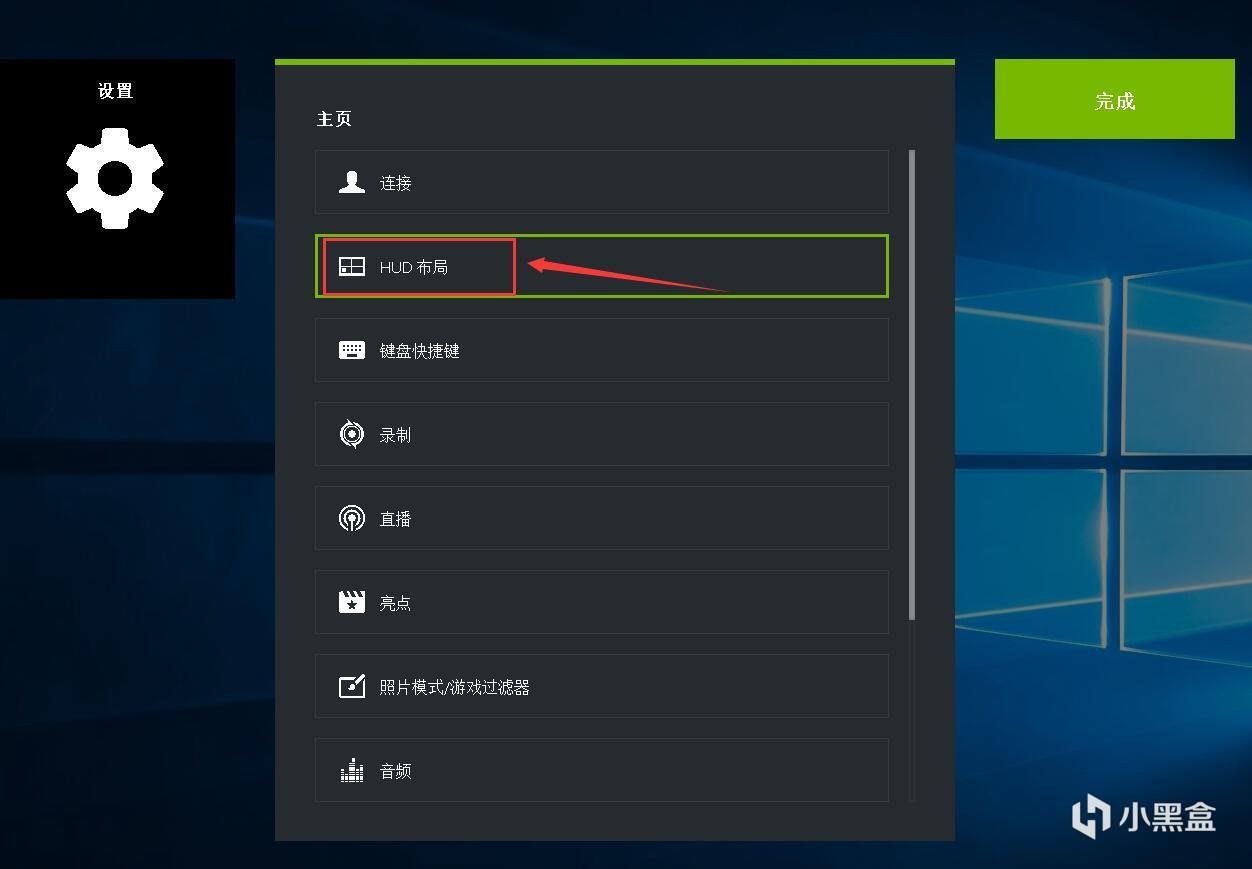

进入设置,打开HUD布局

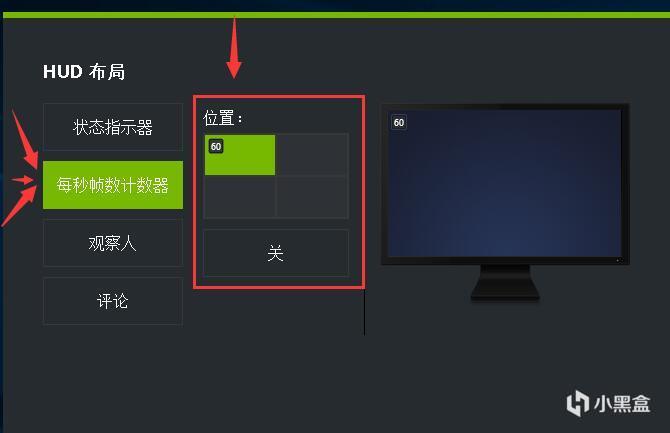

打开HUD布局后,点击每秒帧数计数器,然后选择自己需要显示的位置即可

进入游戏后就能看到帧数啦

A卡帧数显示及硬件监控:

注:由于楼主用的是N卡,以下部分图片来源于网络
如果电脑没有下载A卡驱动在官网下载AMD显卡驱动,打开浏览器,输入网址:https://www.amd.com/zh-hans/support,进入AMD官网后,点击驱动与支持,然后在下方选择自己对应的型号显卡

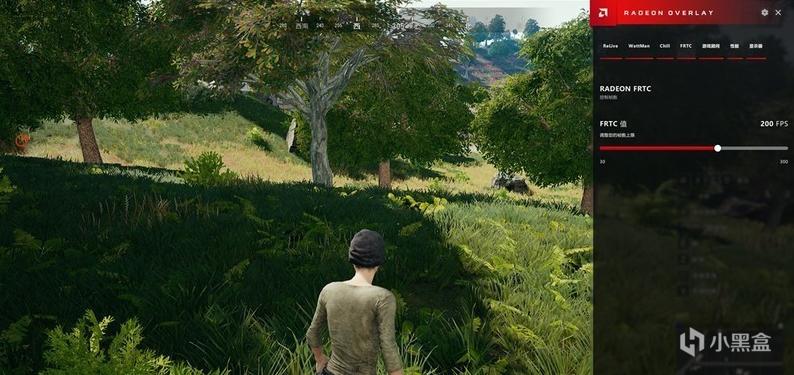

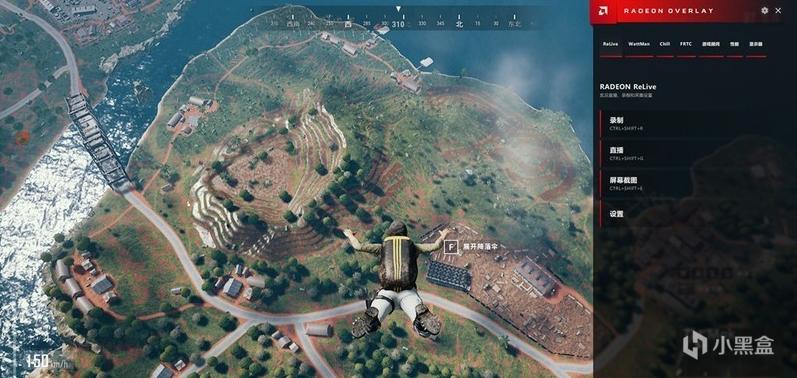

在游戏中通过“Alt+R”呼出RadeonOverlay进行选项调整设置外,玩家还可以直接通过RadeonSettings进行调整,无需进入游戏。
可以分别使用 Ctrl + Shift + O 或 Ctrl + Shift + L 热键切换启用或禁用“显示指标”和“启动性能日志记录”。

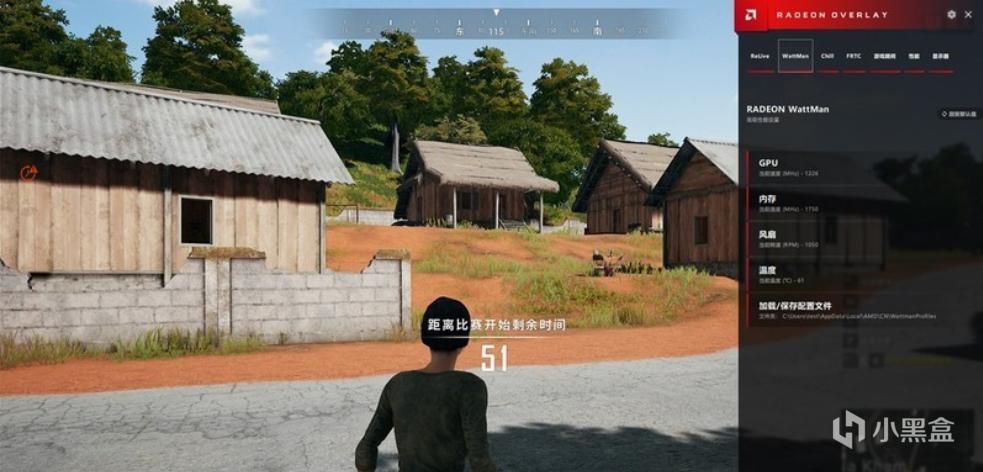

高级性能设置,可以在游戏中设定显卡频率、显存频率、风扇转速、功耗等功能

设定帧数上限,范围为30帧-300帧

游戏帧数测试,点击测试后开始记录和计算,需要注意的是,这个功能仅在玩全屏游戏时才能用

性能监控,这软件几乎支持市面上所有的游戏,可以自由选择显示FPS、GPU使用率、GPU温度等选项,调整监控窗口的显示透明度、大小以及要横着排列还是竖着排列,只要开启后就可以随时观察显卡的变化。

如图上打开FPS选项和自己需求的显示内容就可以在游戏内看到了

二丶Steam自带帧数显示
Steam大家肯定都不陌生了,玩黑盒的盒友们在熟悉不过了,其实Steam也是可以开启游戏帧数显示的,方法如下:

使用方法:
打开Steam,点击左上角视图,然后点击设置

打开设置面板之后,点击第三项游戏中,然后下面有一个游戏帧数显示,选择自己需要的显示位置就行

设置好后,Steam会提示重新启动Steam生效设置修改,重启Steam后在打开游戏就可以看到帧数显示了
注:高对比度颜色:默认关闭(白色),开启后(绿色)

三丶游戏加加
游戏加加是一款显示游戏FPS、高清游戏录像、硬件监控、游戏截图、性能分析、热键屏蔽、世界时钟等多样化的功能,也是我们比较熟悉的一款软件

如何下载:
打开浏览器网页
输入网址:www.gamepp.com/

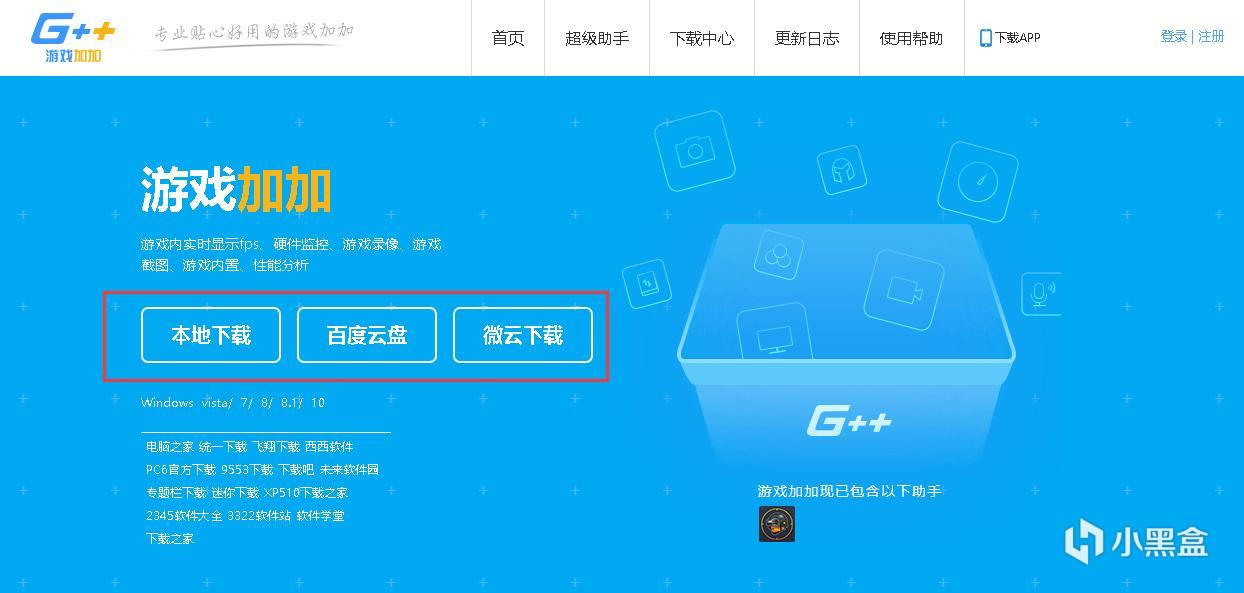

进入G++(游戏加加)网站后,点击下载:

在安装的过程中,默认以下另外两个程序一起安装,如果想只安装游戏加加,可以点击自定义安装,根据红框内选择自己需要的软件

使用方法:
安装完游戏加加后,打开此程序,点击左边的显示进行OSD设置

打开显示设置之后,以下有很多的显示硬件状态功能和FPS帧数显示,根据自己需求选择

注:游戏加加要在后台运行,在游戏内才会有显示OSD

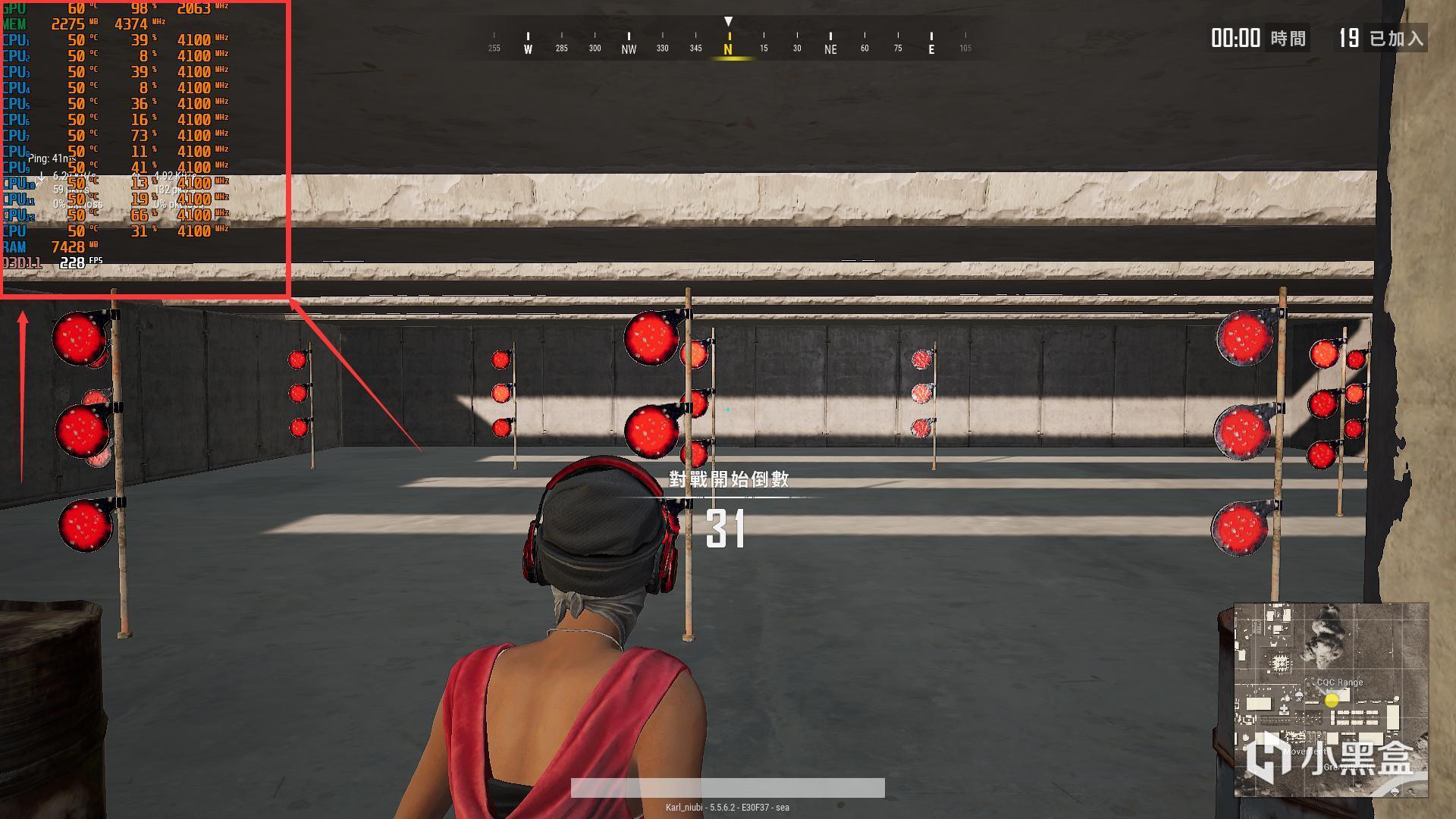

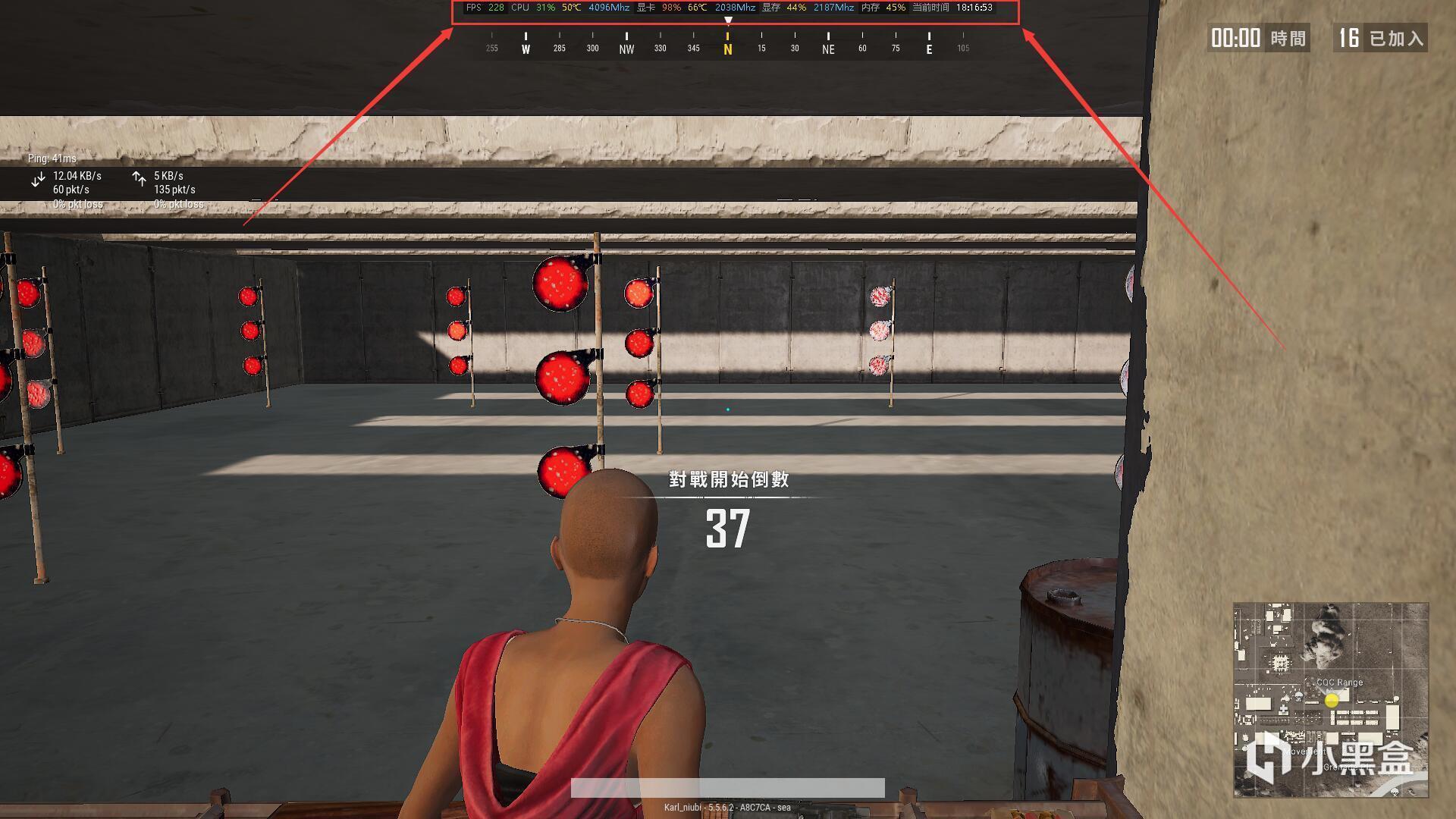

打开游戏后,默认显示内容在屏幕中上方
方框显示信息为:
FPS:数值→CPU:CPU占用率 CPU温度 CPU工作频率→显卡:显卡占用率 显卡温度 显卡Boost频率→显存:显存占用率 显存频率→内存:内存占用率→当前时间:系统时间

在游戏结束后,游戏加加还会弹出性能分析窗口,提供观看游戏运行结束后的帧数曲线图,和占用信息温度等

四丶MSI Afterburner

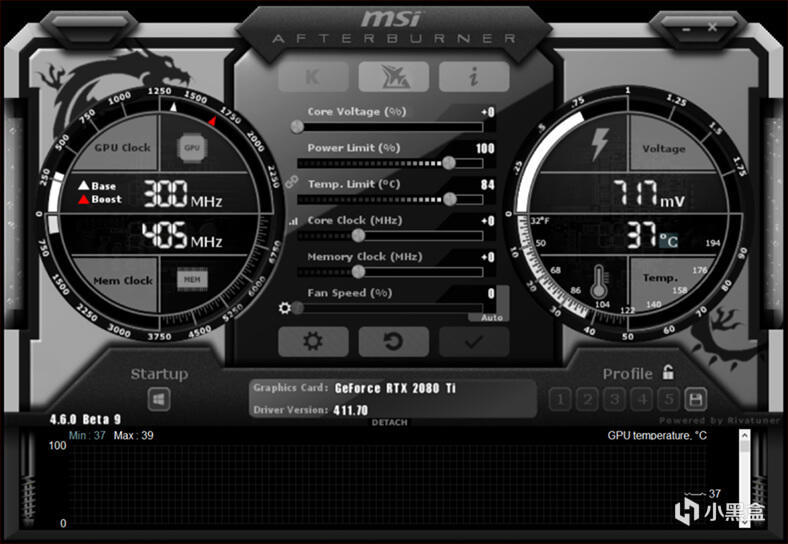

微星Afterburner超频软件是广受玩家喜爱的显卡超频工具, 它提供了令人非常准确的硬件详细概述, 并附带了一些额外的功能, 如自定义风扇配置文件、基准测试和视频录制丶性能监控等,微星Afterburner是完全免费的, 可以与所有品牌的显卡一起使用。

如何下载:
进入网址:https://cn.msi.com/page/afterburner

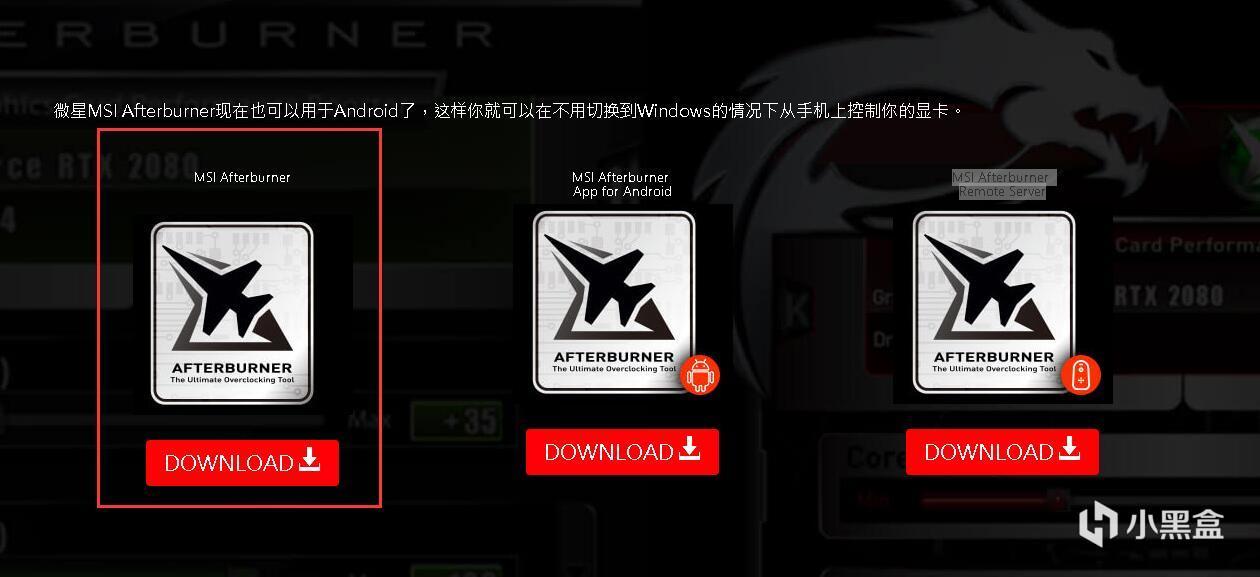

然后拉到最底部,点击左侧,MSI afterburner,然后点击DOWNLOAD即可

下载安装完后点击设置,然后点击监控,注:安装MSI Afterburner的时候一定要连同自带的Rivatuner Statistics Sever,不然是没有硬件监控选项的!
使用方法:

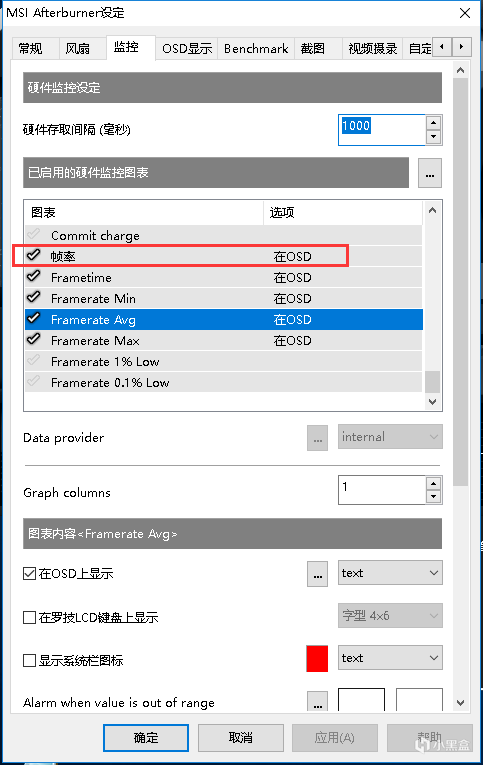

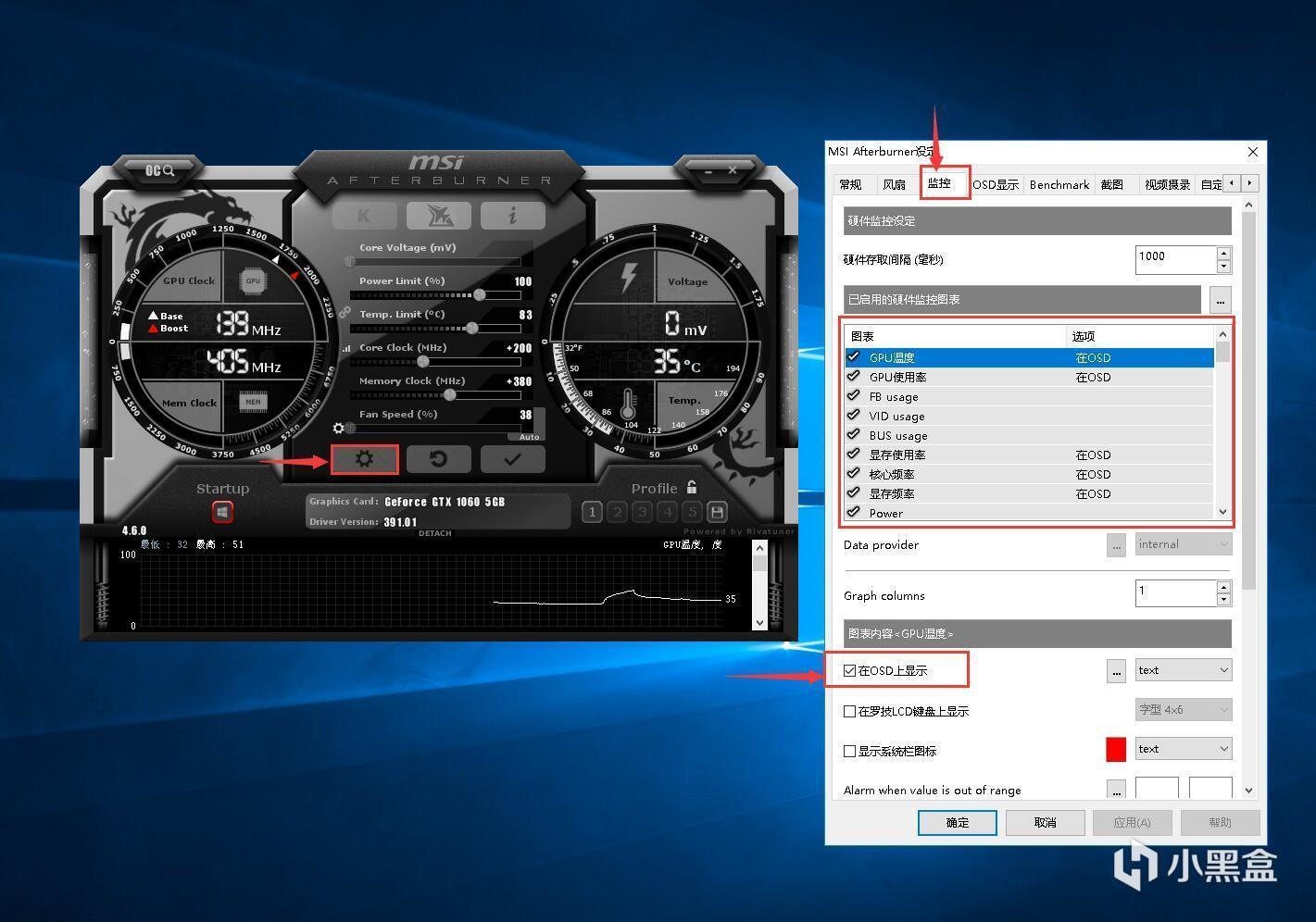

点击监控后,我们可以看到以下图表内容,点击需要监控显示的选项,然后在下方点击在OSD显示,然后点击应用确定即可

非中文选项:
Temp limit = 温度极限
Power limit = 功率极限
Voltage limit = 电压极限
No load limit = 空载限制
CPU Temperature = CPU温度
CPU Usage = CPU使用率
CPU Clock = CPU核心时钟
RAM Usage = 内存使用率
帧数选项:

Framerate Min = 帧数最小值
Framerate Avg = 帧数平均值
Framerate Max = 帧数最大值
设置好后就可以在游戏内看到自己的OSD监控了

五丶Fraps
Fraps是一款显卡辅助软件,用它可以轻松了解机器在运行游戏时的帧数,从而了解机器的性能。另外它还具备在游戏中的截图和视频捕捉功能,可以方便的进行截图和动画捕捉。
显示内容和N卡GE软件显示类似

如何下载:
打开浏览器
输入网址:http://www.fraps.com/

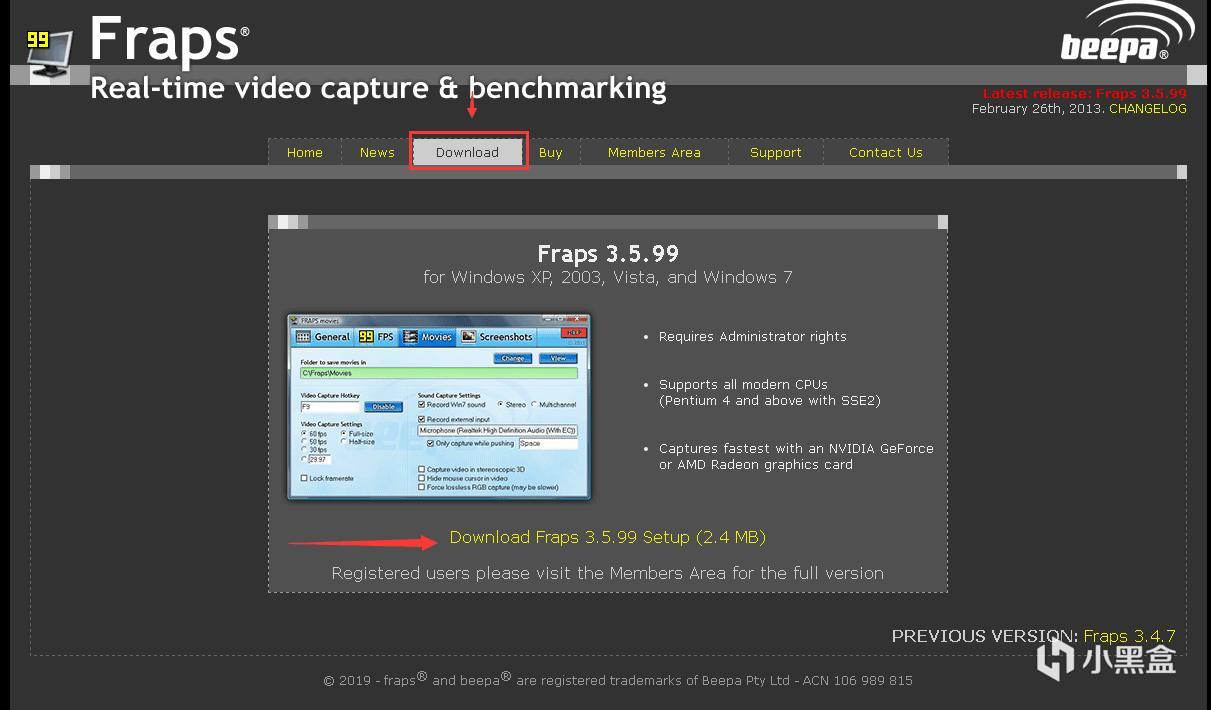

进入网址后,点击Download,然后点击下方Download Fraps 3.5.99 Setup进行安装包下载

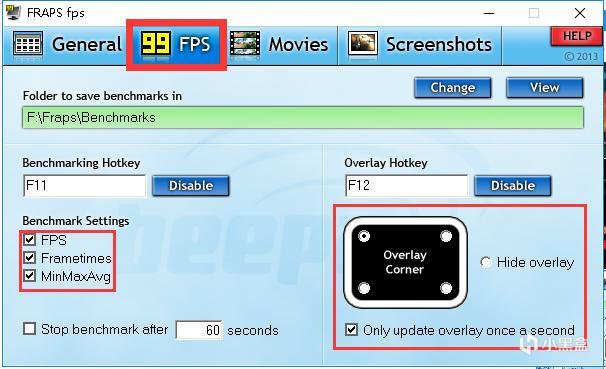

安装完后,点击上方99 FPS 选项进行设置
Folder to save benchmarks in=测试保存目录 Change=更改 View=查看
F11=测试热键
FPS=帧数
Frametimes=帧时间
MinMaxAvg=帧数的最小值→最大值→平均值
Overlay Hotkey=显示热键
Overlay Corner=帧数显示位置
Hide Overlay =隐藏显示
Only Update Overlay once a Second=帧数每秒更新一次 (建议开启此选项,默认0.1秒刷新一次帧数)
Stop benchmark after 60 seconds =停止测试在60秒后

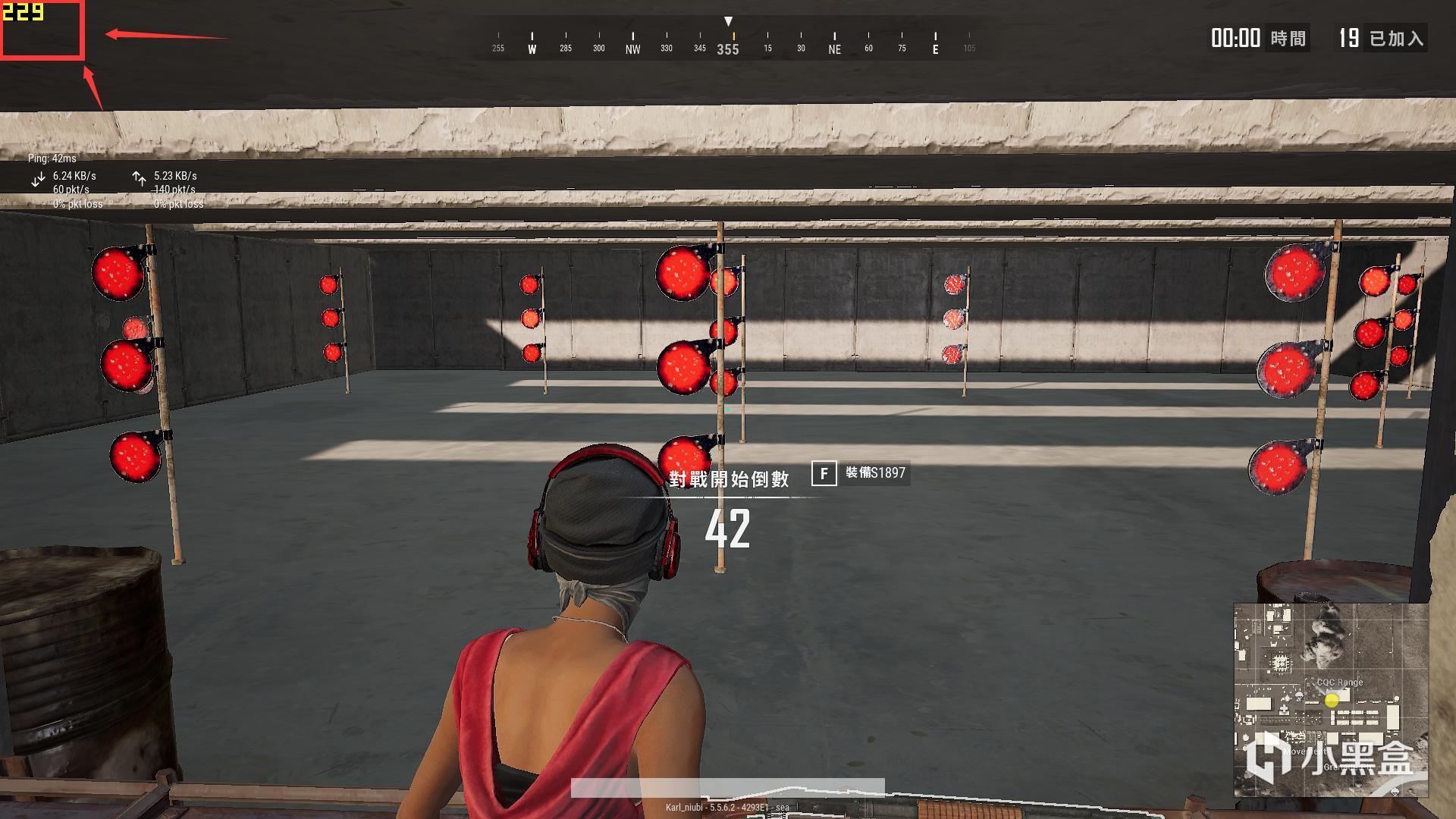

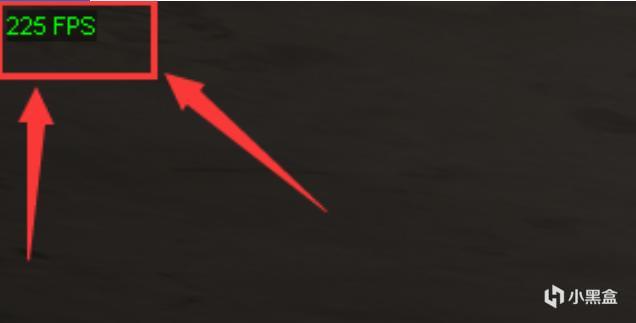

设置好后进入游戏内就可以看到帧数了

六丶小黑盒软件显示帧数
小黑盒官方软件也是有自带显示帧数功能的,我们可以进小黑盒官方网站下载后,进行使用

如何下载:
打开浏览器
输入网址:https://www.xiaoheihe.cn/home
点击APP,然后点击Windows PC端就可以下载了

使用方法:

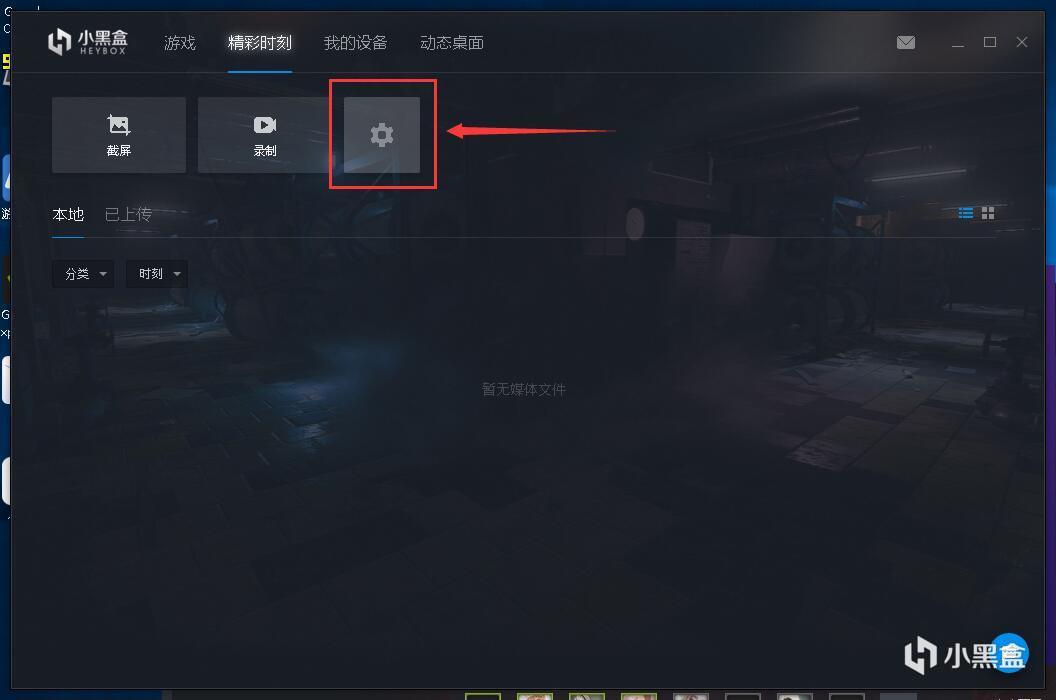

下载完软件之后,点击精彩时刻,点击设置

进入设置后,我们拉到下方找到FPS显示,然后选择自己需要的显示位置即可

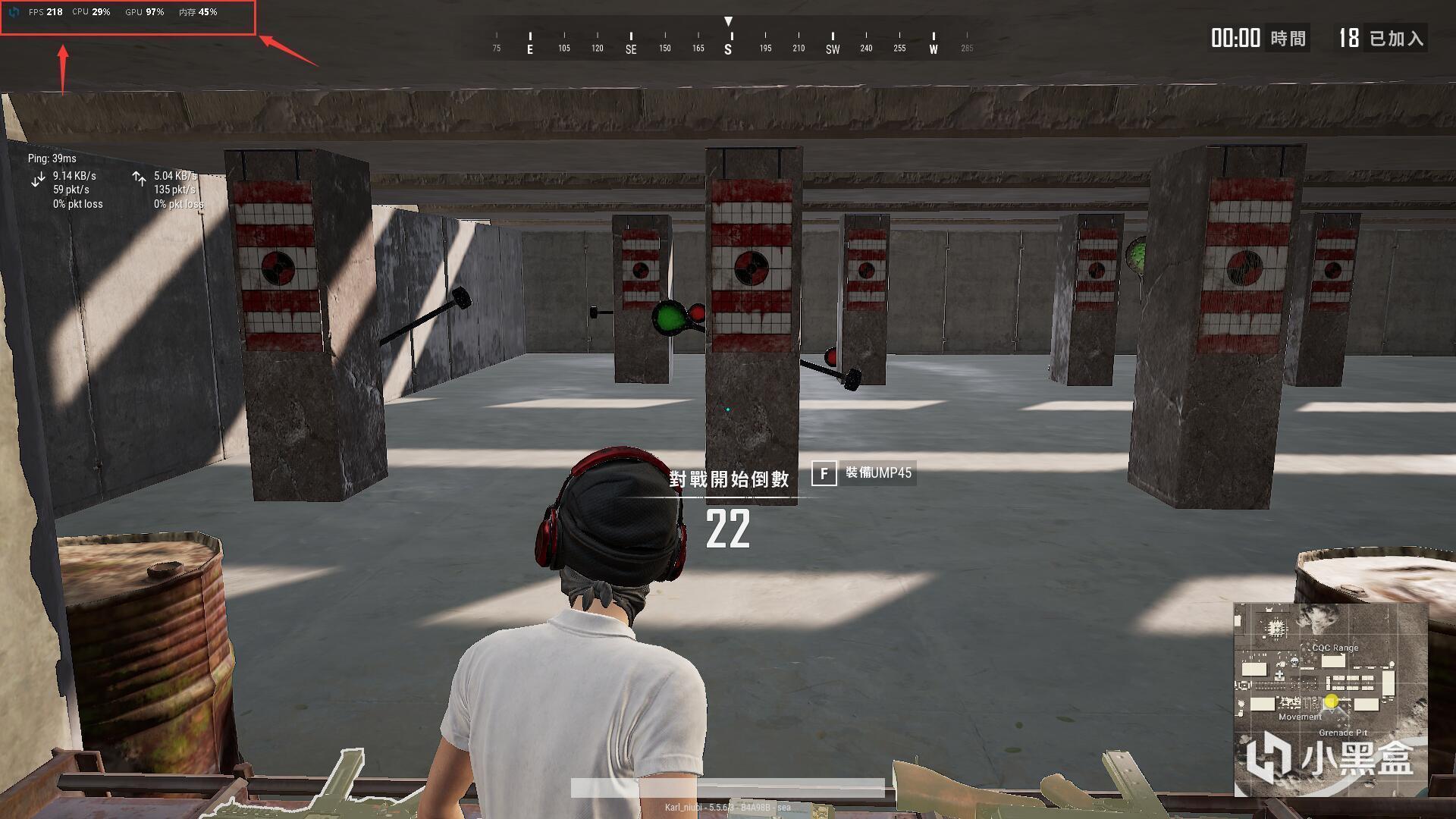

设置好后我们进入游戏就可以看到小黑盒显示的信息啦,从左往右依次为:帧数→CPU占用率→显卡占用率→内存占用率

以上就是本期教程所有内容了
